Home > Products > 614VET

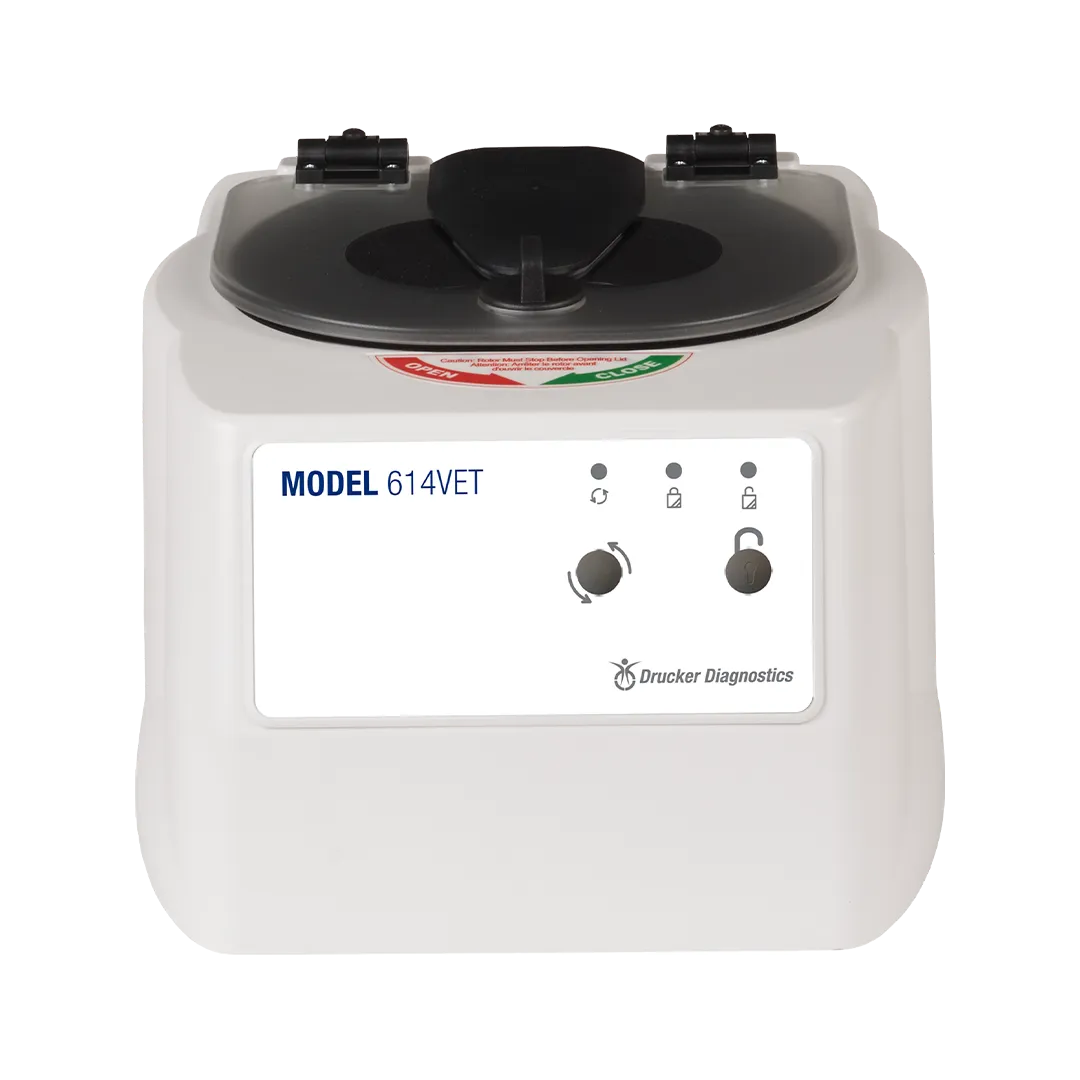

614VET

  • Max Speed (RPM): Up to 1750 RPM
  • Max Speed (RCF): Up to 370 xg
  • Out of Box Capacity: 6 samples up to 15 mL, 6 Imagyst™ tubes
  • Dimensions (WxDxH): 12 x 14 x 9 in (30.5 x 35.6 x 22.9 cm)
  • Weight: 11 lbs (5 kg)
  • Warranty: 2 Years (Extended Available)
Process Vetscan Imagyst™ specimen tubes at the push of a button. The 614VET makes it easy to centrifuge at any veterinary practice.

Ready to use, right out of the box

SKU: 00-118-226-000 Category:

Designed, built, and supported in the USA

Preset Cycles Features Specifications Request Info Product Downloads FAQs

What makes it different?

  • The easiest way to spin Imagyst™ tubes
  • Easy to fit in your crowded practice
  • Based on the world's most popular reference lab centrifuge

Preset Cycles

2 minutes / 1750 RPM / 370 xg

Tubes Most Often Used

Vetscan Imagyst Tubes

Request More Information

Have a question about our centrifuges? Our team is here to provide the information you need. We’re ready to help you get started and support you every step of the way.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
First Name*
Last Name*
Or call 1-866-265-1486 (US Toll-Free)

The 614VET is the preferred centrifuge for Vetscan Imagyst™ and preset to spin up to 6 Imagyst™ tubes. It is designed for the unique needs of you and your team, but built on the technology of the world’s best selling reference lab centrifuge. That means years of engineering to deliver maximum durability, reliability, and value for your practice.

Centrifuges you can count on

Features

  • Out of Box Capacity: 6 samples up to 15 mL, 6 Imagyst™ tubes
  • Fixed Angle: The rotor remains at a fixed angle during sample processing
  • Positive Lid Latching: Firm mechanical latching of the lid prevents the escape of debris
  • Clear Shattered Proof Lid: Allows for safe sample observation and optical calibrations
  • Reinforced Guard Bowl: Provides maximum safety and durability
  • Electrical Certifications: Certified to US, Canadian, and European Safety regulations and standards

Specifications

  • Dimensions (WxDxH): 12 x 14 x 9 in (30.5 x 35.6 x 22.9 cm)
  • Weight: 11 lbs (5 kg)
  • Factory Settings Range: 1 to 30 Minutes (± 1%)
  • Voltage: 115 (± 10) Volts
  • Frequency: 50/60 Hz

Product Downloads

Zoetis 614VET Operator’s Manual

Frequently Asked Questions

Drucker Diagnostics provides a two (2) year parts and labor warranty. 1, 2, and 3-year extended warranties are available for purchase within 90 days of your centrifuge’s original ship date.

All of our centrifuges are sold complete with the rotor and tube holders. No additional accessories are necessary though there are additional options available for purchase.

Drucker Diagnostics recommends the centrifuge be calibrated every 2 years.

ONLY isopropyl alcohol, soap and water, or a 10% (5,500 PPM) bleach solution should be used for cleaning and disinfection of the centrifuge and accessories. The centrifuge must be unplugged and all surfaces must be dried immediately after cleaning and disinfecting.

TBQ Germicidal products should not be used as they will cause damage to the centrifuge and void the warranty. The use of fully/partially halogenated hydrocarbons, ketones, esters, ethers, benzyls, ethyl benzenes, and all other chemicals not prescribed by Drucker Diagnostics should not be used as they may cause damage to the rotor chamber, rotor, tube holders, accessories, and centrifuge exterior. If this occurs the warranty will be voided.
