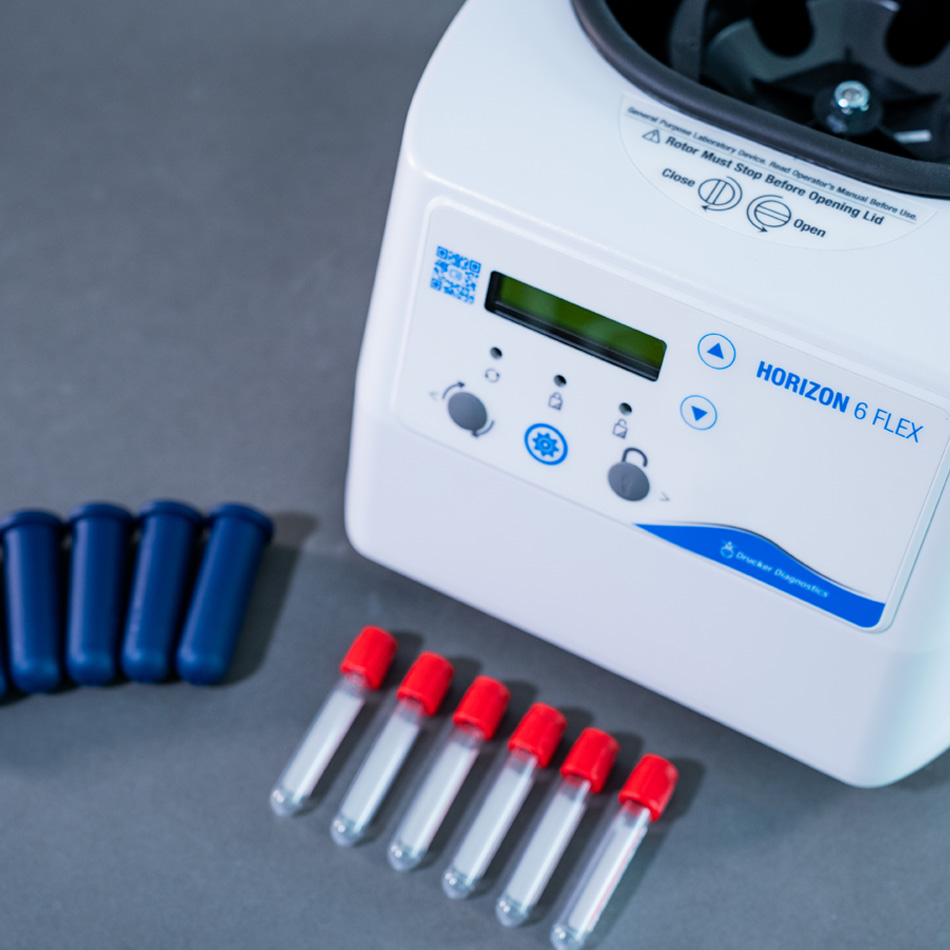

HORIZON 6 Flex Centrifuge
- Max Speed (RPM): Up to 3800 RPM
- Max Speed (RCF): Up to 2000 xg
- Out of Box Capacity: 6 samples up to 10 mL
- Dimensions: 12 x 14 x 9 in (30.5 x 35.6 x 22.9 cm)
- Weight: 12 lbs (5.4 kg)
- Warranty: 2 Years (Extended Available)
Compact and customizable, the HORIZON 6 Flex gives you full control over cycle settings in a compact, user-friendly body. Its horizontal rotor spins up to six tubes and delivers consistent, high-quality separation every spin.
Ready to use, right out of the box
$1,851.22
Designed, built, and supported in the USA
Ask your preferred distributor about purchasing the HORIZON 6 Flex Centrifuge , or call 1-866-265-1486 for volume pricing.
What makes it different?
- Fits tight spaces with a compact 1.16 ft² footprint.
- Satisfies the most diverse routine processing requirements.
- Features 10 programmable settings for all your applications.
Preset Cycles
5 minutes / 1900 RPM / 500 xg
10 minutes / 3600 RPM / 1850 xg
15 minutes / 3300 RPM / 1500 xg
Applications
- Blood Chemistry
- Microtube Samples
Tubes Most Often Used
Easy to Use
Use the simple, two-button interface to select a preset, or program and record your validated settings on the included label.
Easy to Monitor
Monitor time remaining down to the very last second on the digital display. LED lid lighting is off when the centrifuge is ready, on when running, and flashing at end of cycle.
Engineered for Safety
Protect your lab with imbalance detection and a shatterproof lid that can only be opened when the centrifuge’s rotor is stopped, even if the unit loses power.
Unique Features
The HORIZON 6 Flex is a compact, programmable centrifuge built for labs that need control and consistency in a smaller footprint. It holds six tubes up to 16 x 100 mm or 10 mL and reaches speeds up to 3,800 RPM (2,000 xg). Users can program custom settings for time, speed, g-force, and deceleration, or choose from three pre-set cycles. Made in the USA and backed by a two-year warranty, the HORIZON 6 Flex delivers reliable results in a flexible, space-saving design.
Features
- Out of Box Capacity - 6 samples up to 10 mL
- Tube Sizes - Up to 16 x 100 mm or 10 mL, Up to 10 x 46 mm or 2 mL (with adapter sold separately)

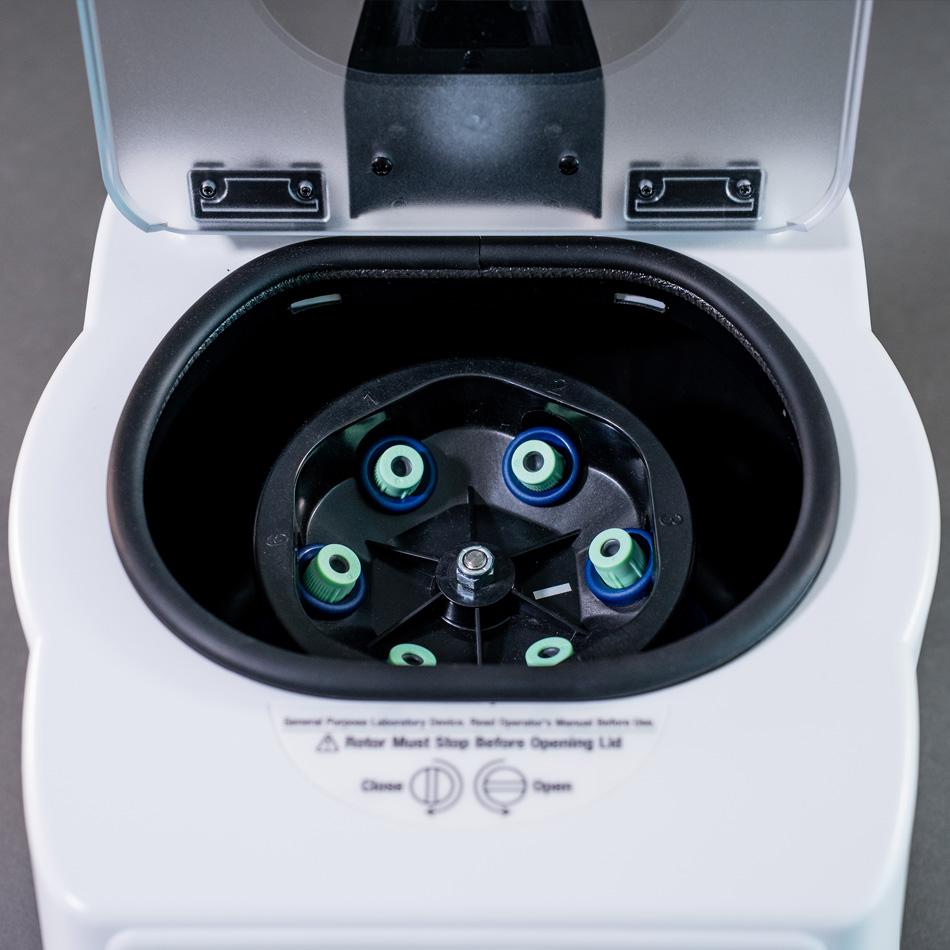

- Swing-Out Horizontal - Drucker Diagnostics’ patented swing-out horizontal rotor design produces ideal horizontally separated samples
- Clear Shattered Proof Lid - Allows for safe sample observation and optical calibrations
- Reinforced Guard Bowl - Provides maximum safety and durability
- Regulatory Approvals - Certified to US, Canadian, and European Safety regulations and standards
Specifications
- Dimensions - 12 x 14 x 9 in (30.5 x 35.6 x 22.9 cm)
- Weight - 12 lbs (5.4 kg)
- Factory Settings Range - 1 to 30 Minutes (± 1%)
- voltage - 100 – 240 (+/- 10%) VAC
Product Downloads
Frequently Asked Questions
Drucker Diagnostics provides a two (2) year parts and labor warranty.
All of our centrifuges are sold complete with the rotor and tube holders. No additional accessories are necessary though there are additional options available for purchase.
Drucker Diagnostics recommends the centrifuge be calibrated every 2 years.
ONLY isopropyl alcohol, soap and water, or a 10% (5,500 PPM) bleach solution should be used for cleaning and disinfection of the centrifuge and accessories. All surfaces must be dried immediately after cleaning and disinfecting.
TBQ Germicidal products should not be used as they will cause damage to the centrifuge and void the warranty. The use of fully/partially halogenated hydrocarbons, ketones, esters, ethers, benzyls, ethyl benzenes, and all other chemicals not prescribed by Drucker Diagnostics should not be used as they may cause damage to the rotor chamber, rotor, tube holders, accessories, and centrifuge exterior. If this occurs the warranty will be voided.
