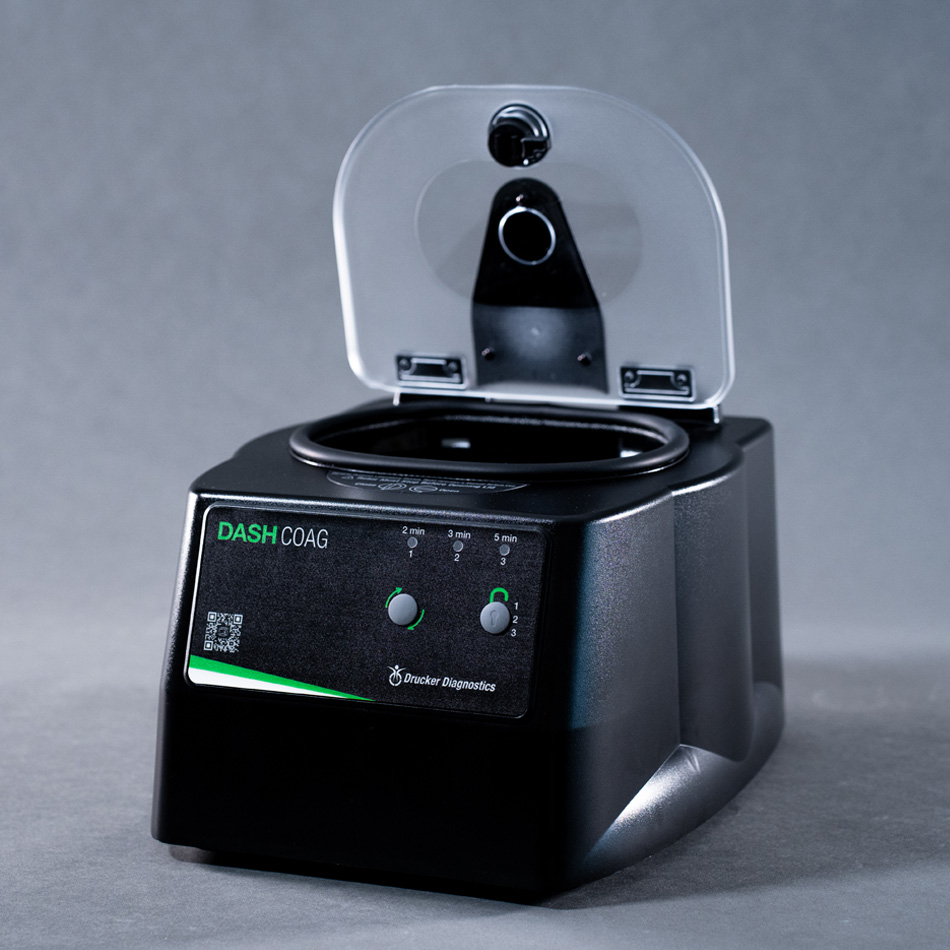

DASH Coag STAT Centrifuge
- Max Speed (RPM): Up to 6600 RPM
- Max Speed (RCF): Up to 4400 xg
- Max Capacity: 12 samples up to 10 mL
- Dimensions (WxDxH): 12 x 14 x 9 in (30.5 x 35.6 x 22.9 cm)
- Weight: 17 lbs (7.7 kg)
- Warranty: 2 Years (Extended Available)
Ready to use, right out of the box
$4,076.64
Designed, built, and supported in the USA
Ask your preferred distributor about purchasing the DASH Coag STAT Centrifuge , or call 1-866-265-1486 for volume pricing.
What makes it different?
- Delivers STAT coag and PPP samples in as little as 2 minutes.
- Features a redesigned fixed angle rotor to support high-throughput STAT testing.
- Meets increased demand with larger 10 mL tube compatibility.
Preset Cycles
2 minutes / 6600 RPM / 4400 xg
3 minutes / 6600 RPM / 4400 xg
5 minutes / 5200 RPM / 2700 xg
Applications
- Microtube Samples
- PPP / Coag
- STAT Processing
Tubes Most Often Used
Easy to Use
The simple interface makes it easy to select settings on the fly, use one of three pre-programmed settings for clinical lab applications, or lock to a single cycle.
Reduce Turnaround Time
Eliminate wait time by using a centrifuge array in accessioning to eliminate queuing. The array takes advantage of DASH’s compact size to allow samples to be spun as soon as they arrive.
Extended Coverage
All Drucker centrifuges are eligible for 1, 2, or 3-year extended warranty coverage. Purchase within 90 days of your original ship date to extend your protection.
Unique Features
The DASH Coag has been redesigned to accommodate larger tube sizes and higher STAT workloads. Now capable of spinning 12 tubes up to 16 x 100 mm or 10 mL, its fixed angle rotor reaches a max speed of 6,600 RPM (4,400 xg) to produce accurate coag and PPP samples in as little as 2 minutes. Choose from three preset cycles or lock to a single validated setting to reduce user error. The DASH Coag is compact, easy to use, and integrates seamlessly into existing STAT workflows.
Features
- Out of Box Capacity: 12 samples up to 10 mL
- Tube Sizes: Up to 16 x 100 mm or 10 mL
- Configurable Capacity: 12 samples up to 2 mL (with adapters sold separately)
- Fixed Angle: The rotor remains at a 45° angle during sample processing
- Clear Shattered Proof Lid: Allows for safe sample observation and optical calibrations
- Reinforced Guard Bowl: Provides maximum safety and durability
- Electrical Certifications: Certified to US, Canadian, and European Safety regulations and standards
- Warranty Coverage: 2-year standard warranty, extended warranties available for purchase within 90 days of original ship date
Specifications
- Dimensions (WxDxH): 12 x 14 x 9 in (30.5 x 35.6 x 22.9 cm)
- Weight: 17 lbs (7.7 kg)
- Factory Settings Range: 1 to 30 Minutes (± 1%)
- Voltage: 100 – 240 (+/- 10%) VAC
- Frequency: 50/60 Hz
Product Downloads
Frequently Asked Questions
Drucker Diagnostics provides a two (2) year parts and labor warranty. 1, 2, and 3-year extended warranties are available for purchase within 90 days of your centrifuge’s original ship date.
All of our centrifuges are sold complete with the rotor and tube holders. No additional accessories are necessary though there are additional options available for purchase.
Drucker Diagnostics recommends the centrifuge be calibrated every 2 years.
ONLY isopropyl alcohol, soap and water, or a 10% (5,500 PPM) bleach solution should be used for cleaning and disinfection of the centrifuge and accessories. The centrifuge must be unplugged and all surfaces must be dried immediately after cleaning and disinfecting.
TBQ Germicidal products should not be used as they will cause damage to the centrifuge and void the warranty. The use of fully/partially halogenated hydrocarbons, ketones, esters, ethers, benzyls, ethyl benzenes, and all other chemicals not prescribed by Drucker Diagnostics should not be used as they may cause damage to the rotor chamber, rotor, tube holders, accessories, and centrifuge exterior. If this occurs the warranty will be voided.
