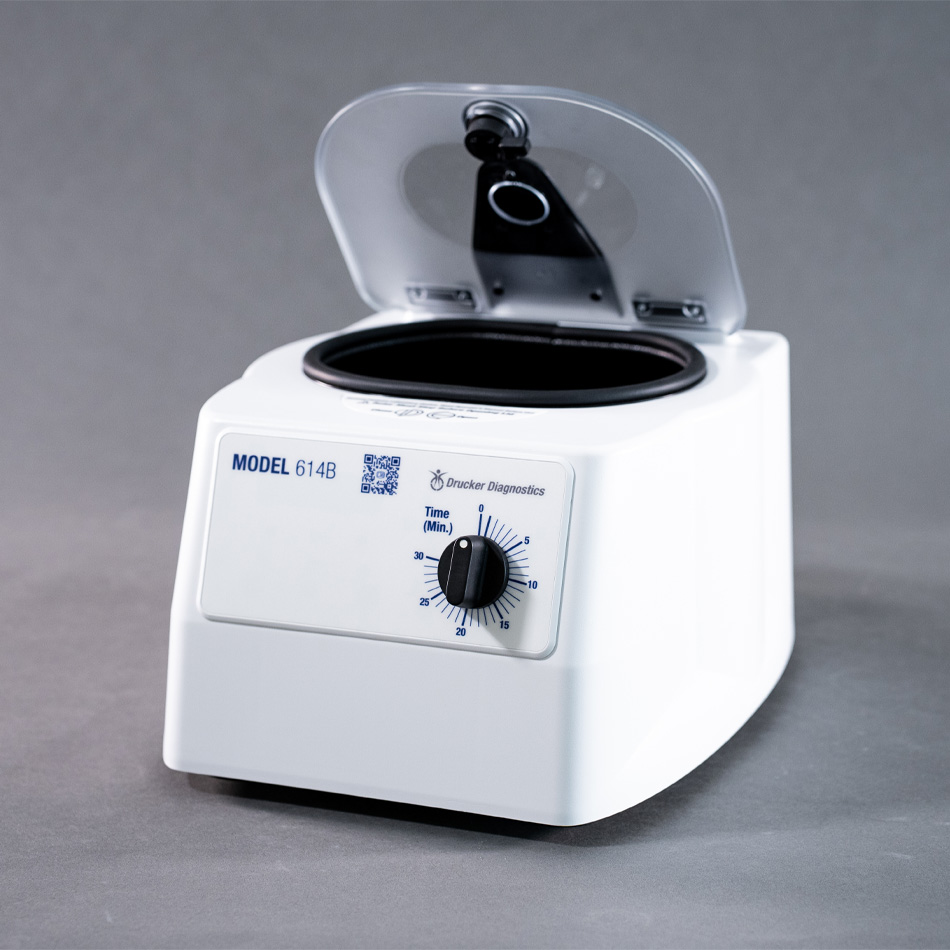

614B
- Max Speed (RPM): Up to 3350 RPM
- Max Speed (RCF): Up to 1300 xg
- Out of Box Capacity: 6 samples up to 15 mL
- Dimensions: 12 x 14 x 9 in (30.5 x 35.6 x 22.9 cm)
- Weight: 11 lbs (5 kg)
- Warranty: 2 Years (Extended Available)
Built for doctor’s offices and small labs, the 614B provides reliable fixed-angle separation at an affordable price. Its mechanical timer and single-speed setting make operation fast and error-free.
Ready to use, right out of the box
$519.66
Designed, built, and supported in the USA
Ask your preferred distributor about purchasing the 614B , or call 1-866-265-1486 for volume pricing.
What makes it different?
- Provides runtime flexibility with a mechanical 1–30 minute dial.
- Standardizes processing with a fixed g-force of 1,300 xg.
- Delivers trusted performance at an unbeatable price.
Preset Cycles
1-30 minutes / 3250 RPM / 1200 xg
Applications
- Blood Chemistry
- Fecal
- Microtube Samples
- Urine
Tubes Most Often Used
A Great Value

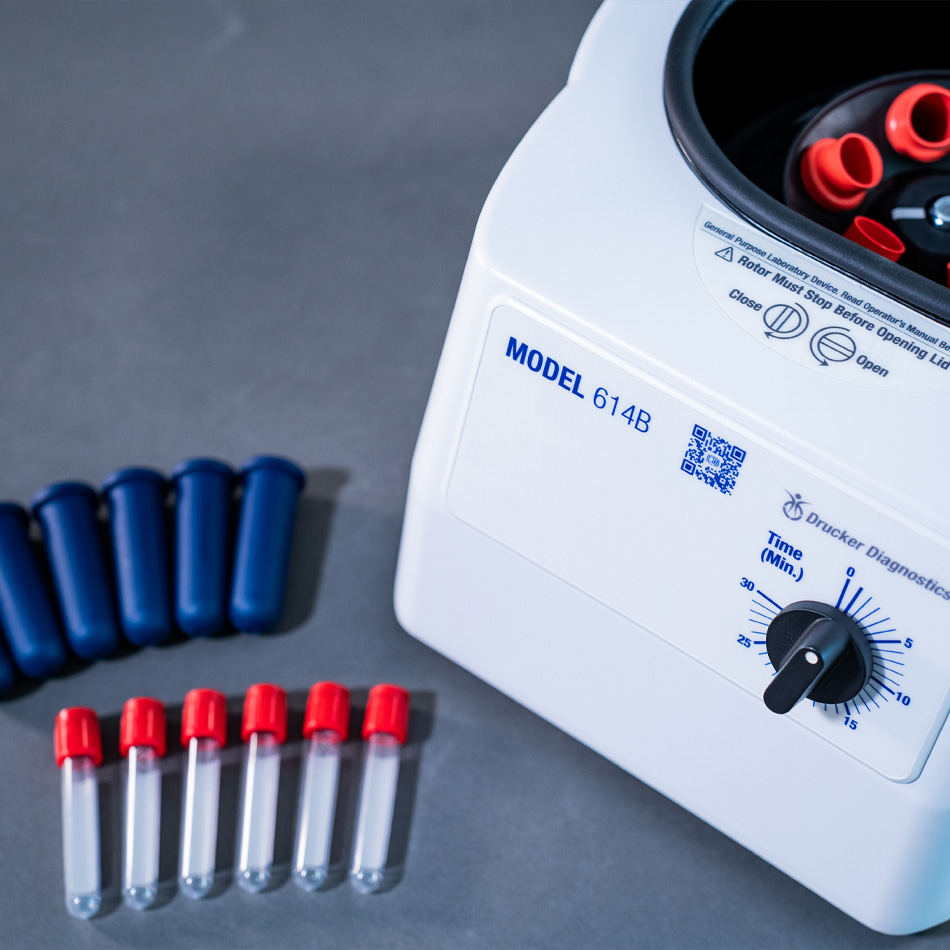

Get a reliable centrifuge at a price that fits any budget. The unit arrives ready for use with the horizontal rotor, tube holders, and 2-year warranty included in the affordable price.
Built to Last
The reinforced components and brushless motor provide years of maintenance-free operation, and the automatically locking lid enhances safety.
Engineered for Safety
Protect your lab with imbalance detection and a shatterproof lid that can only be opened when the centrifuge’s rotor is stopped, even if the unit loses power.
Unique Features
Simple, reliable, and budget-friendly, the Model 614B offers reliable fixed-angle separation and runtime flexibility without added complexity. Its mechanical timer allows for run times between 1 and 30 minutes, and its single setting of 1,300 xg ensures consistent separation for chemistry and coag samples. This 6-tube centrifuge is ideal for doctor’s offices, clinics, and small labs where specimens are processed on-site. Built in the USA and backed by a two-year warranty, the 614B combines dependable performance with exceptional value.
Features
- Out of Box Capacity - 6 samples up to 15 mL
- Tube Sizes - Up to 16 x 100 mm or 10 mL, Up to 16 x 125 mm or 15 mL, Up to 10 x 46 mm or 2 mL (with adapter sold separately)
- Fixed Angle - The rotor remains at a 45° angle during sample processing
- Clear Shattered Proof Lid - Allows for safe sample observation and optical calibrations
- Reinforced Guard Bowl - Provides maximum safety and durability
- Regulatory Approvals - Certified to US, Canadian, and European Safety regulations and standards
Specifications
- Dimensions - 12 x 14 x 9 in (30.5 x 35.6 x 22.9 cm)
- Weight - 11 lbs (5 kg)
- Factory Settings Range - 1 to 30 Minutes (± 1%)
- voltage - 115 (± 10) Volts
Product Downloads
Frequently Asked Questions
Drucker Diagnostics provides a two (2) year parts and labor warranty.
All of our centrifuges are sold complete with the rotor and tube holders. No additional accessories are necessary though there are additional options available for purchase.
Drucker Diagnostics recommends the centrifuge be calibrated every 2 years.
ONLY isopropyl alcohol, soap and water, or a 10% (5,500 PPM) bleach solution should be used for cleaning and disinfection of the centrifuge and accessories. All surfaces must be dried immediately after cleaning and disinfecting.
TBQ Germicidal products should not be used as they will cause damage to the centrifuge and void the warranty. The use of fully/partially halogenated hydrocarbons, ketones, esters, ethers, benzyls, ethyl benzenes, and all other chemicals not prescribed by Drucker Diagnostics should not be used as they may cause damage to the rotor chamber, rotor, tube holders, accessories, and centrifuge exterior. If this occurs the warranty will be voided.
