DASH Flex 24 STAT Centrifuge

  • Max Speed (RPM): Up to 4500 RPM
  • Max Speed (RCF): Up to 3450 xg
  • Out of Box Capacity: 24 samples up to 10 mL, 12 samples up to 15 mL
  • Dimensions: 15 x 17 x 9 in (38.1 x 43.2 x 22.9 cm)
  • Weight: 39 lbs (17 kg)
  • Warranty: 2 Years (Extended Available)

The DASH Flex 24 is the highest-capacity centrifuge in the DASH STAT line, built to meet the demands of high-volume labs. It spins up to 24 tubes at 4500 RPM and 3450 xg, helping to reduce turnaround time when it matters most.

Ready to use, right out of the box

SKU: 00-184-009-000 Category:

$5,177.18

Designed, built, and supported in the USA

Ask your preferred distributor about purchasing the DASH Flex 24 STAT Centrifuge , or call 1-866-265-1486 for volume pricing.

Features Request Info Specifications Preset Cycles Product Downloads FAQs

What makes it different?

  • Features the highest STAT capacity in the DASH centrifuge line.
  • Accommodates a variety of tube sizes from 10 mL to 50 mL.
  • Combines powerful performance with a compact footprint.

Preset Cycles

5 minutes / 4300 RPM / 3150 xg

6 minutes / 4300 RPM / 3150 xg

7 minutes / 3500 RPM / 2100 xg

Applications

  • Blood Chemistry
  • Microtube Samples
  • PPP / Coag
  • STAT Processing

Tubes Most Often Used

Lithium Heparin (With Gel), Serum (Without Gel), Serum Separator (With Gel), Sodium Citrate

Easy to Use

The simple interface makes it easy to select settings on the fly, use one of three pre-programmed settings for clinical lab applications, or lock to a single cycle.

Reduce Turnaround Time

Eliminate wait time by using a centrifuge array in accessioning to eliminate queuing. The array takes advantage of DASH’s compact size to allow samples to be spun as soon as they arrive.

Engineered for Safety

Protect your lab with imbalance detection and a shatterproof lid that can only be opened when the centrifuge’s rotor is stopped, even if the unit loses power.

Built for large, high-volume STAT labs, the DASH Flex 24 is the highest-capacity model in the DASH STAT centrifuge line. It reaches a maximum speed of 4500 RPM and 3450 xg, delivering fast, accurate separation across chemistry, coag, and PPP workflows. With a small footprint, it fits easily in accessioning, and its 24-tube capacity allows it to be loaded and run more quickly, further driving down turnaround time. Use the simple controls to adjust time, speed and more on the fly. Or, choose from one of three common STAT presets, program up to 10 of your validated settings, or lock to a single cycle.

Centrifuges you can count on

Features

  • Out of Box Capacity - 24 samples up to 10 mL, 12 samples up to 15 mL
  • Tube Sizes - Up to 16 x 100 mm or 10 mL, Up to 16 x 125 mm or 15 mL, Up to 10 x 46 mm or 2 mL (with adapter sold separately), Up to 30 x 115 mm or 50 mL (with carriers sold separately)
  • Configurable Capacity - 24 samples up to 2 mL (with adapters sold separately), 6 samples up to 50 mL (with carriers sold separately)
  • Swing-Out Horizontal - Drucker Diagnostics’ patented swing-out horizontal rotor design produces ideal horizontally separated samples

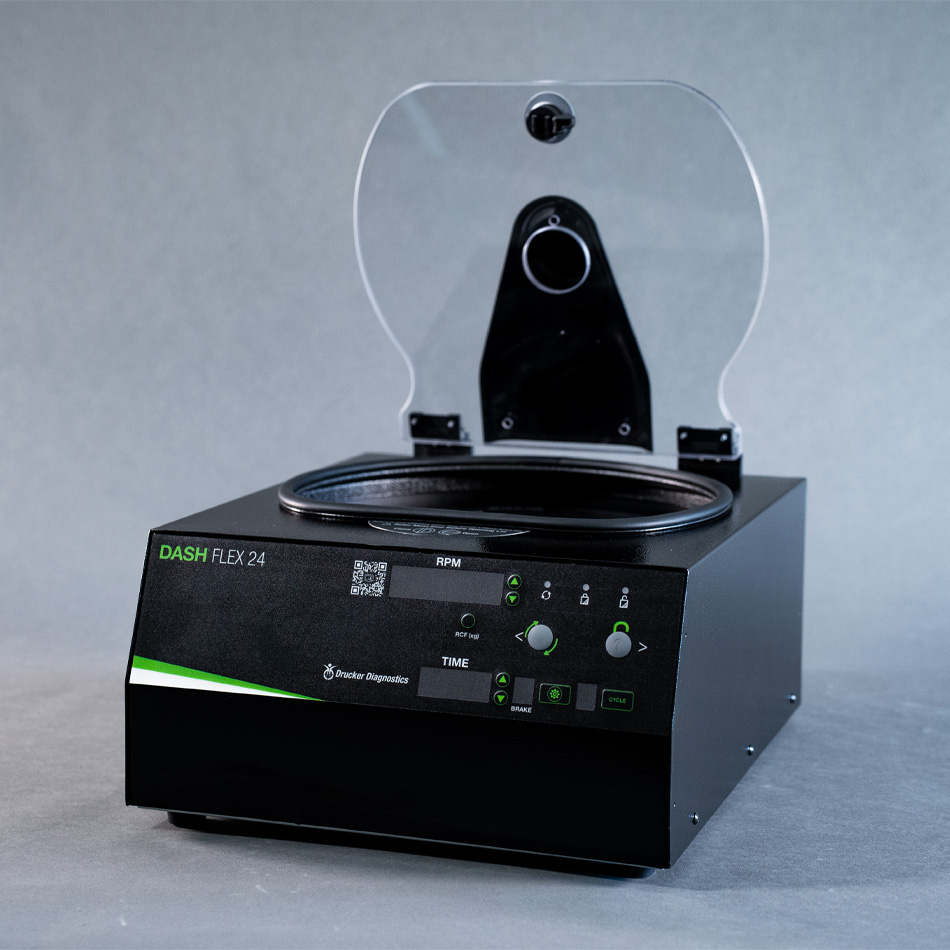

  • Clear Shattered Proof Lid - Allows for safe sample observation and optical calibrations
  • Reinforced Guard Bowl - Provides maximum safety and durability
  • Regulatory Approvals - Certified to US, Canadian, and European Safety regulations and standards

Specifications

  • Dimensions - 15 x 17 x 9 in (38.1 x 43.2 x 22.9 cm)
  • Weight - 39 lbs (17 kg)
  • Factory Settings Range - 1 to 30 Minutes (± 1%)
  • voltage - 100 – 240 (+/- 10%) VAC
  • Frequency - 50/60 Hz

Product Downloads

DASH Flex 24 Datasheet

DASH Flex 24 Operator’s Manual

Centrifuge Reference Guide – Clinical Lab

Centrifuge Decision Tree

DASH vs. StatSpin Comparison Sheet

Frequently Asked Questions

Drucker Diagnostics provides a two (2) year parts and labor warranty.

All of our centrifuges are sold complete with the rotor and tube holders. No additional accessories are necessary though there are additional options available for purchase.

Drucker Diagnostics recommends the centrifuge be calibrated every 2 years.

ONLY isopropyl alcohol, soap and water, or a 10% (5,500 PPM) bleach solution should be used for cleaning and disinfection of the centrifuge and accessories. All surfaces must be dried immediately after cleaning and disinfecting.

TBQ Germicidal products should not be used as they will cause damage to the centrifuge and void the warranty. The use of fully/partially halogenated hydrocarbons, ketones, esters, ethers, benzyls, ethyl benzenes, and all other chemicals not prescribed by Drucker Diagnostics should not be used as they may cause damage to the rotor chamber, rotor, tube holders, accessories, and centrifuge exterior. If this occurs the warranty will be voided.
